Glass Straight-line Edging Machine

Glass straight-line edging machine is suitable for grinding straight-line edges and hemline of flat glass of different sizes and thicknesses. Rough grinding, fine grinding and polishing can be completed at one time. When adjusting different processing thicknesses, the front chamfer grinding head can move synchronously with the front beam. It has the advantages of advanced structure, high accuracy, convenient operation, and high work efficiency. It is a necessary equipment for glass processing.

Glass straight-line edging machine is most used widely glass edging machine in the glass processing industry.

  • Description

Contents

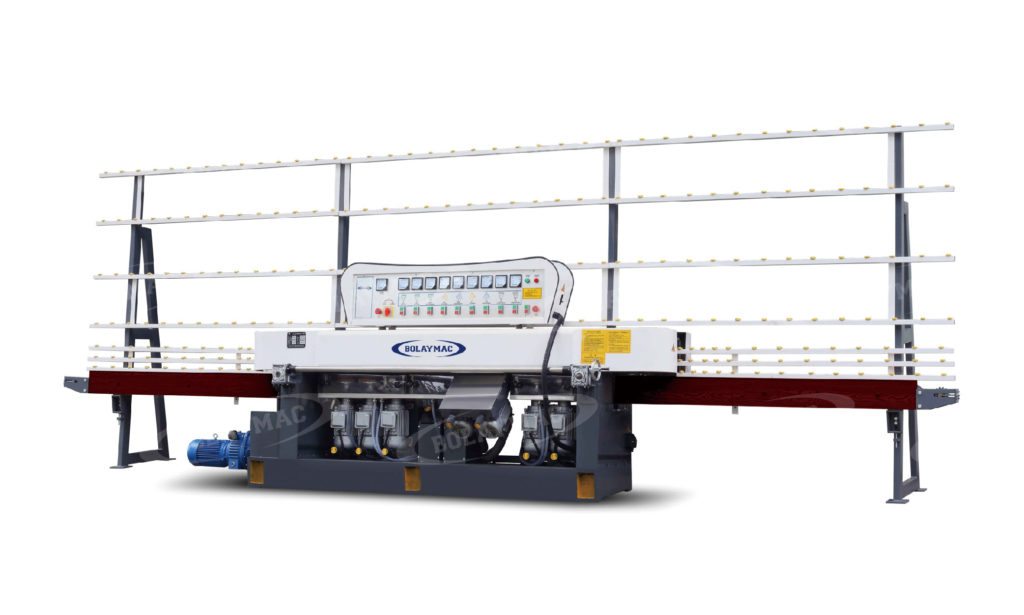

Glass Straight-line Edging Machine

Glass Straight-line Edging Machine Glass Straight-line Edging Machine

Technical Features

  • Glass Straight-line Edging Machine is suitable for processing straight-line edges and 45º angle;
  • Rough grinding, fine grinding, and polishing are processed at one time, and it is adjusted by a continuously variable motor;
  • The feeding speed can be adjusted arbitrarily during the processing; the front beam can be adjusted to process glass of different thicknesses;
  • The special design of the input end can effectively control the glass grinding volume without debugging each grinding motor separately;
  • Using chain plate rolling structure.

Technical Parameter

Spindles 9 sets
Processing speed: 0.5~5m/min
Min. processing size of glass: 80 x 80mm
Glass processing thickness: 3~25mm
Total power:   19.5kw
Voltage: 380V/50Hz or customized
Gross weight: 2800 kgs
Occupation area: (LxWxH) 6800x1000x2500mm
Optional:
Motor brand JINGLONG/ ABB
Water tank Steel / S.S201/ S.S304
PLC Yes / No
Conveyor lift device Yes / No
Conveyor+support frame Chain+steel frame/ Timing belt+aluminum



Scope of Application

Suitable for architectural glass, insulated glass, home appliance glass, and LOW-E Glass.
